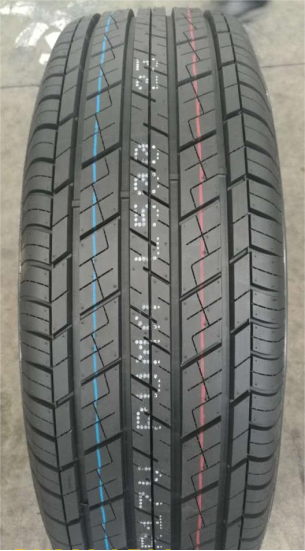

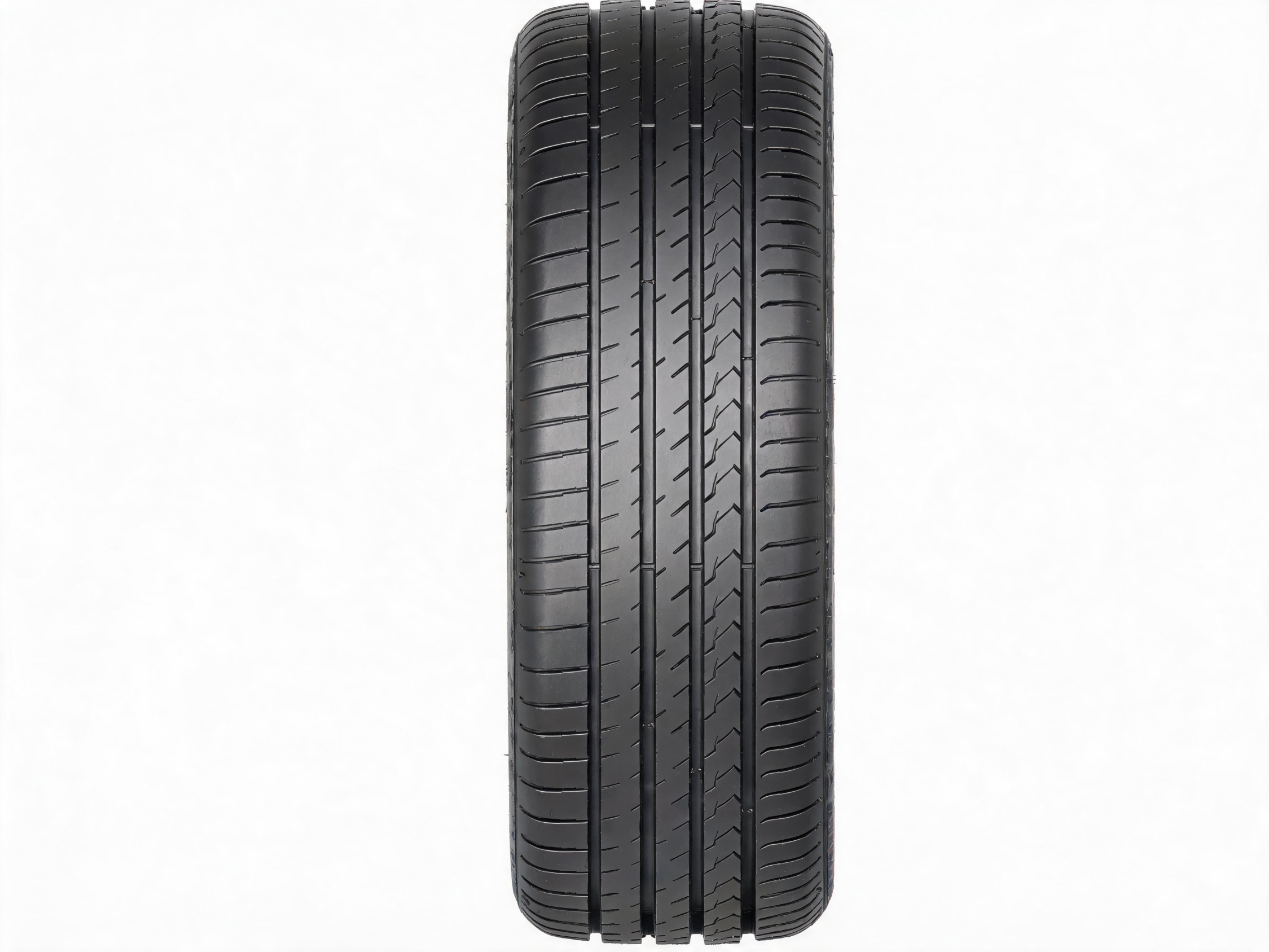

MANAGE V500
Tire Introduction
> Excellent braking and handling performance on wet road adapt to city and country road condition
> The perfect integration of comfort, quietness and off-road let it be possible to enjoy the pleasure of sports and cross-country
Main Feature
> 3D PATTERN BLOCK DESIGN
Provide good traction performance on pavement and non-pavemen
> FOUR WIDE STRAIGHT GROOVES
Provide better drainage performance on mud road, prevent side sliding efficiently
> SPECIAL WEAR-PROOF STRIP DESIGN
Enhance the stability while making a turn in a high speed
| SIZE |
LOAD INDEX |
SPEED INDEX |
RIM |
S.W. mm |
O.D. mm |
MAX LOADING |
MAX PRESSURE |
||||
| SINGLE | DOUBLE | ||||||||||
| 215/60R17 | 96 | V | 6 1/2J | 221 |
690 | 710 |
1565 | / | / | 300 |
44 |
| 225/60R17 | 99 | V | 6 1/2J | 228 | 702 | 775 | 1709 | / | / | 300 | 44 |
| 225/65R17 | 102 | V | 6 1/2J | 228 | 724 | 850 | 1874 | / | / | 300 | 44 |
| 235/65R17 | 104 | V | 7J | 240 | 738 | 900 | 1984 | / | / | 300 | 44 |
| 235/50R18 | 97 | V | 7 1/2J | 245 | 693 | 825 | 1819 | / | / | 340 | 50 |
| 225/55R18 | 98 | V | 7J | 233 | 705 | 750 | 1653 | / | / | 300 | 44 |
| 235/55R18 | 104 | W | 7 1/2J | 245 | 715 | 900 | 1984 | / | / | 340 | 50 |
| 255/55R18 | 109 | W | 8J | 265 | 737 | 1030 | 2271 | / | / | 340 | 50 |
| 225/60R18 | 100 | V | 6.5 | 228 | 727 | 800 | 1764 | / | / | 300 | 44 |
| 235/60R18 | 107 | V | 7J | 240 | 739 | 975 | 2149 | / | / | 340 | 50 |
| 235/50ZR19 | 103 | W | 7 1/2J | 245 | 719 | 875 | 1929 | / | / | 340 | 50 |
| 255/50R19 | 107 | W | 8J | 265 | 739 | 975 | 2149 | / | / | 340 | 50 |
| 265/50R19 | 110 |
V | 8 1/2J | 277 | 749 | 1060 | 2337 | / | / | 340 | 50 |
| 235/55R19 | 105 | V | 7 1/2J | 245 | 741 | 925 | 2039 | / | / | 340 | 50 |
| 245/55R19 | 103 |
W | 7 1/2J | 253 | 753 | 875 | 1929 | / | / | 300 | 44 |
| 235/55ZR20 | 105 | W | 7 1/2J | 245 | 766 | 925 | 2039 | / | / | 340 | 50 |
| 255/55ZR20 | 110 | W | 8J | 265 | 788 | 1060 | 2337 | / | / | 340 | 50 |
| 275/45R20 | 110 | W |
9J | 271 | 756 | 1090 | 2337 | / | / | 340 | 50 |
